ACE

Welcome to the A.C.E., the motorhome that is Made to Fit your adventures.

It started with a simple concept: revolutionize the motorhome market by creating a coach with the best of a Class A and a Class C. The features that make the A.C.E. so popular have also made it the undisputed leader in gas motorhomes. See why so many people call theA.C.E home and start an adventure of your own today!

Categories: , , Tags: ,
Send an Enquiry About this Product
Share

Color Options

Interior Decor Options

  • Silver Lining

  • Mesa Mineral

  • Arctic Frost

Cabinetry Options

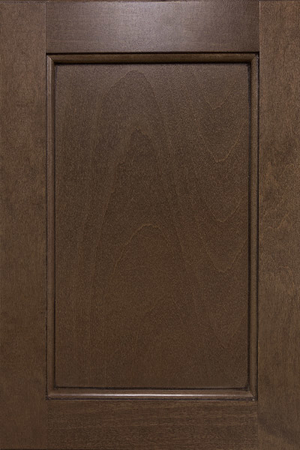

  • Brazilian Cherry

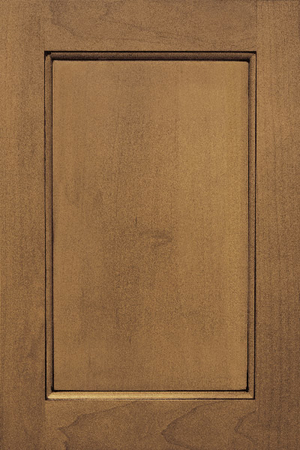

  • Sydney Maple

Exterior Graphics

  • Harmony HD-MAX™

  • Rhythm & Blues HD-MAX™

Floorplan Specifications

27.2 29.2 29.3 29.4 30.1 30.2 Bunkhouse
Year 2017 2017 2017 2017 2017 2017
Brand A.C.E. A.C.E. A.C.E. A.C.E. A.C.E. A.C.E.
Chassis Ford® F-53 Ford® F-53 Ford® F-53 Ford® F-53 Ford® F-53 Ford® F-53
Fuel Type Gasoline Gasoline Gasoline Gasoline Gasoline Gasoline
Ford Engine 6.8L V10 320HP 460 lb-ft Torque 6.8L V10 320HP 460 lb-ft Torque 6.8L V10 320HP 460 lb-ft Torque 6.8L V10 320HP 460 lb-ft Torque 6.8L V10 320HP 460 lb-ft Torque 6.8L V10 320HP 460 lb-ft Torque
Ford GVWR 16,000 lbs 16,000 lbs 18,000 lbs 18,000 lbs 18,000 lbs 18,000 lbs
Ford GCWR 23,000 lbs 23,000 lbs 23,000 lbs 23,000 lbs 23,000 lbs 23,000 lbs
Wheelbase 178″ 190″ 190″ 190″ 190″ 190″
Exterior Length 28′-9″ 29′-9″ 29′-9″ 30′-6″ 31′ 31′-6″
Exterior Height 12′-2″ 12′-2″ 12′-2″ 12′-2″ 12′-2″ 12′-2″
Exterior Width 99″ 99″ 99″ 99″ 99″ 99″
Interior Height 84″ 84″ 84″ 84″ 84″ 84″
Awning Size 19′ 14′ 18′ 18′ 14′ 19′
Fuel 80 gal 80 gal 80 gal 80 gal 80 gal 80 gal
LPG 88 lbs 88 lbs 88 lbs 88 lbs 88 lbs 88 lbs
Fresh Water 50 gal 50 gal 50 gal 50 gal 50 gal 50 gal
Black Water 40 gal 40 gal 26 gal 44 gal 24.5 gal 28 gal
Gray Front 33 gal / Rear 40 gal 47 gal 47 gal 44 gal 44 gal 40 gal
Water Heater 6 gal 6 gal 6 gal 6 gal 6 gal 6 gal
Furnace 30,000 BTU 35,000 BTU 35,000 BTU 35,000 BTU 35,000 BTU 35,000 BTU
Exterior Storage 56 cu. ft. 117 cu. ft. 48 cu. ft. (84 w/out Ext. Kitchen) 52 cu. ft. (88 w/out Ext. Kitchen) 68 cu. ft. 95 cu. ft.
Trailer Hitch Rating 8,000 lbs 8,000 lbs 8,000 lbs 8,000 lbs 8,000 lbs 8,000 lbs
Sleeping Capacity 6 6 6 6 6 7
Passenger Capacity 6 6 6 6 6 6

MinusPlusConstruction & Exterior

Model 27.2 29.2 29.3 29.4 30.1 30.2
Bunkhouse
Automatic Hydraulic Leveling Jacks with Touchpad Controls S S S S S S
Vacu-Bond Laminated Roof, Walls & Floors with Block Foam Insulation S S S S S S
Welded Tubular Aluminum Roof and Sidewall Cage Construction S S S S S S
One-Piece Fiberglass Front Cap S S S S S S
Premium One-Piece TPO Roof S S S S S S
One-Piece Windshield S S S S S S
HD-MAX® Exterior with Graphics Package S S S S S S
Exterior Rear MEGA-Storage™ Compartment N/A S N/A N/A N/A N/A
Rotocast Storage Compartments S S S S S S
Black Frameless Radius Corner Windows S S S S S S
Slideout Room Awning S S S S S S
Roof Ladder S S S S S S
Power Patio Awning with Integrated LED Lighting S S S S S S
Patio Light S S S S S S
Motorhome Mudroom™ Compartment S S S N/A S S
Entry Door with Deadbolt Lock S S S S S S
Electric Entry Step S S S S S S
Outside Shower S S S S S S
Exterior Grab Bar Handle S S S S S S
Pet-Link™ Multi-Purpose Tie-Down S S S S S S
8,000-lb. Trailer Hitch with 7-pin Round Connector S S S S S S
Side-Hinged Flush Mount Radius Compartment Doors S S S S S S

PlusAutomotive & Cockpit

PlusInterior

PlusKitchen

PlusBedroom & Bathroom

PlusEntertainment

PlusElectrical & Plumbing

Floor Plans



  • 27.2

    28′-9″ Class A MotorhomesFord® F-53 Chassis

  • 29.2

    29′-9″ Class A MotorhomesFord® F-53 Chassis

  • 29.3

    29′-9″ Class A Motorhomes
    Ford® F-53 Chassis

  • 29.4

    30′-6″ Class A Motorhomes

    Ford® F-53 Chassis

  • 30.1

    31′ Class A Motorhomes

    Ford® F-53 Chassis

  • 30.2 Bunkhouse

    31′-6″ Class A Motorhomes

    Ford® F-53 Chassis

Common Specs

Year 2017 Exterior Width 99″
Brand A.C.E. Interior Height 84″
Chassis Ford® F-53 Fuel 80 gal
Ford Engine 6.8L V10 320HP 460 lb-ft Torque LPG 88 lbs
Fuel Type Gasoline Fresh Water 50 gal
Ford GCWR 23,000 lbs Water Heater 6 gal
Exterior Height 12′-2″ Passenger Capacity 6

27.2 A.C.E. Class A Motorhomes

Buy My New Coach

Motorhome’s Key Features

  • Flexible & Spacious Ultra-Compact Class A Motorhome
  • Denver Mattress™ King Bed in Bedroom
  • Variety of Sleeping Areas for Guests including Dream Dinette®, Sofa and Power Drop-Down Bunk
  • Kitchen Pantry

Motorhome’s Optional Items

There Are No Options For the Model.

27.2 A.C.E. Class A Motorhomes
Year 2017 Awning Size 19′
Brand A.C.E. Fuel 80 gal
Chassis Ford® F-53 LPG 88 lbs
Ford Engine 6.8L V10 320HP 460 lb-ft Torque Fresh Water 50 gal
Fuel Type Gasoline Black Water 40 gal
Ford GVWR 16,000 lbs Gray Front 33 gal / Rear 40 gal
Ford GCWR 23,000 lbs Water Heater 6 gal
Wheelbase 178″ Furnace 30,000 BTU
Exterior Length 28′-9″ Exterior Storage 56 cu. ft.
Exterior Height 12′-2″ Trailer Hitch Rating 8,000 lbs.
Exterior Width 99″ Sleeping Capacity 6
Interior Height 84″ Passenger Capacity 6
Compare All Floor Plan Specs

29.2 A.C.E. Class A Motorhomes

Buy My New Coach

Motorhome’s Key Features

  • Compact Class A Motorhome w/Open & Spacious Layout
  • Private Bedroom Area with Denver Mattress® Queen Size Bed
  • Kitchen Pantry
  • Dream Dinette® Booth & Sofa Provides Extra Sleeping Areas

Motorhome’s Optional Items

  • There Are No Options For the Model.



Get Motorhome's Brochure Motorhome Maker Local RV Dealers

29.2 A.C.E. Motorhome Specs
Year 2017 Awning Size 14′
Brand A.C.E. Fuel 80 gal
Chassis Ford® F-53 LPG 88 lbs
Ford Engine 6.8L V10 320HP 460 lb-ft Torque Fresh Water 50 gal
Fuel Type Gasoline Black Water 40 gal
Ford GVWR 16,000 lbs Gray 47 gal
Ford GCWR 23,000 lbs Water Heater 6 gal
Wheelbase 190″ Furnace 35,000 BTU
Exterior Length 29′-9″ Exterior Storage 117 cu. ft.
Exterior Height 12′-2″ Trailer Hitch Rating 8,000 lbs
Exterior Width 99″ Sleeping Capacity 6
Interior Height 84″ Passenger Capacity 6
Compare All Floor Plan Specs

29.3 A.C.E. Class A Motorhomes

Buy My New Coach

Motorhome’s Key Features

  • Compact Class A Motorhome w/Open & Spacious Layout
  • Full Wall Slideout with 3TRAX™ Wall Slide System
  • Exterior Kitchen with 2.6 cu. ft. Refrigerator, Sink, Portable Gas Grill & 1000-watt Inverter
  • Variety of Sleeping Areas for Guests including Dream Dinette®, Sofa and Power Drop-Down Bunk

Motorhome’s Optional Items

  • Storage Area with Shelf IPO Exterior Kitchen



Get Motorhome's Brochure Motorhome Maker Local RV Dealers

29.3 A.C.E. Motorhome Specs
Year 2017 Awning Size 18′
Brand A.C.E. Fuel 80 gal
Chassis Ford® F-53 LPG 88 lbs
Ford Engine 6.8L V10 320HP 460 lb-ft Torque Fresh Water 50 gal
Fuel Type Gasoline Black Water 26 gal
Ford GVWR 18,000 lbs Gray 47 gal
Ford GCWR 23,000 lbs Water Heater 6 gal
Wheelbase 190″ Furnace 35,000 BTU
Exterior Length 29′-9″ Exterior Storage 48 cu. ft. (84 w/out Ext. Kitchen)
Exterior Height 12′-2″ Trailer Hitch Rating 8,000 lbs
Exterior Width 99″ Sleeping Capacity 6
Interior Height 84″ Passenger Capacity 6
Compare All Floor Plan Specs

29.4 A.C.E. Class A Motorhomes

Buy My New Coach

Motorhome’s Key Features

  • Compact Class A Motorhome w/Open & Spacious Layout
  • Bedroom Slideout featuring Denver Mattress® King Size Bed
  • Kitchen Pantry
  • Exterior Kitchen featuring 2.6 cu. ft. Refrigerator, Sink, Portable Gas Grill & 1000-watt Inverter

Motorhome’s Optional Items

  • Storage Area with Shelf IPO Exterior Kitchen



Get Motorhome's Brochure Motorhome Maker Local RV Dealers

29.4 A.C.E. Motorhome Specs
Year 2017 Awning Size 18′
Brand A.C.E. Fuel 80 gal
Chassis Ford® F-53 LPG 88 lbs
Ford Engine 6.8L V10 320HP 460 lb-ft Torque Fresh Water 50 gal
Fuel Type Gasoline Black Water 44 gal
Ford GVWR 18,000 lbs Gray 44 gal
Ford GCWR 23,000 lbs Water Heater 6 gal
Wheelbase 190″ Furnace 35,000 BTU
Exterior Length 30′-6″ Exterior Storage 52 cu. ft. (88 w/out Ext. Kitchen)
Exterior Height 12′-2″ Trailer Hitch Rating 8,000 lbs
Exterior Width 99″ Sleeping Capacity 6
Interior Height 84″ Passenger Capacity 6
Compare All Floor Plan Specs

30.1 A.C.E. Class A Motorhomes

Buy My New Coach

Motorhome’s Key Features

  • Easy-to-Drive Class A Motorhome with Two Slideouts
  • Bedroom Slideout with Denver Mattress® Queen Size Bed
  • Kitchen Pantry
  • Variety of Sleeping Areas for Guests including Dream Dinette®, Sofa and Power Drop-Down Bunk

Motorhome’s Optional Items

  • Storage Area with Shelf IPO Exterior Kitchen



Get Motorhome's Brochure Motorhome Maker Local RV Dealers

30.1 A.C.E. Motorhome Specs
Year 2017 Awning Size 14′
Brand A.C.E. Fuel 80 gal
Chassis Ford® F-53 LPG 88 lbs
Ford Engine 6.8L V10 320HP 460 lb-ft Torque Fresh Water 50 gal
Fuel Type Gasoline Black Water 24.5 gal
Ford GVWR 18,000 lbs Gray 44 gal
Ford GCWR 23,000 lbs Water Heater 6 gal
Wheelbase 190″ Furnace 35,000 BTU
Exterior Length 31′ Exterior Storage 68 cu. ft.
Exterior Height 12′-2″ Trailer Hitch Rating 8,000 lbs
Exterior Width 99″ Sleeping Capacity 6
Interior Height 84″ Passenger Capacity 6
Compare All Floor Plan Specs

30.2 Bunkhouse A.C.E. Class A Motorhomes

Buy My New Coach

Motorhome’s Key Features

  • Easy-to-Drive Class A Motorhomes with Bunk Beds
  • Two (2) 13″ LED TVs & DVD Player in Bunk Bed Area
  • Full Wall Slideout with 3TRAX® Wall Slide System
  • Kitchen Pantry

Motorhome’s Optional Items

  • Storage Area with Shelf IPO Exterior Kitchen



Get Motorhome's Brochure Motorhome Maker Local RV Dealers

30.2 Bunkhouse A.C.E. Motorhome Specs
Year 2017 Awning Size 19′
Brand A.C.E. Fuel 80 gal
Chassis Ford® F-53 LPG 88 lbs
Ford Engine 6.8L V10 320HP 460 lb-ft Torque Fresh Water 50 gal
Fuel Type Gasoline Black Water 28 gal
Ford GVWR 18,000 lbs Gray 40 gal
Ford GCWR 23,000 lbs Water Heater 6 gal
Wheelbase 190″ Furnace 35,000 BTU
Exterior Length 31′-6″ Exterior Storage 95 cu. ft.
Exterior Height 12′-2″ Trailer Hitch Rating 8,000 lbs
Exterior Width 99″ Sleeping Capacity 7
Interior Height 84″ Passenger Capacity 6
Compare All Floor Plan Specs

Specification

New Features for 2017

  • Reading Lights in Cockpit
  • Dream Dinette® Booth
  • 12-Volt MaxxAir® Attic Fan with FANMATE™ Vent Cover
  • Lighted Step Well
  • Exterior 32″ LED TV on Manual Swivel
  • Black Tank Flush System now standard on all floor plans
  • Upgraded 15,000 BTU Air Conditioner

Motorhome’s Key Features

  • Bird’s Eye™ Window
  • Better Homes and Gardens® RV Fabric Collection
  • Leatherette Furniture
  • Denver Mattress® Bed
  • Pet-Link™ Multi-Purpose Tie-Down
  • Pull-Out Kibble Station™ with FDA Approved Pet Bowl Liner
